Kilonewtons to Kilograms-force: 1 kN equals 101.97162 kgf. To convert kilonewtons to kilograms-force, multiply by 101.97162 (kgf = kN × 101.972). For example, 10 kN = 1019.7162 kgf.
How to Convert Kilonewtons to Kilograms-force
To convert from kilonewtons to kilograms-force, multiply the value by 101.97162. The conversion is linear, meaning doubling the input doubles the output.
Conversion Formula
- Kilonewtons to Kilograms-force:
kgf = kN × 101.972 - Kilograms-force to Kilonewtons:
kN = kgf ÷ 101.972

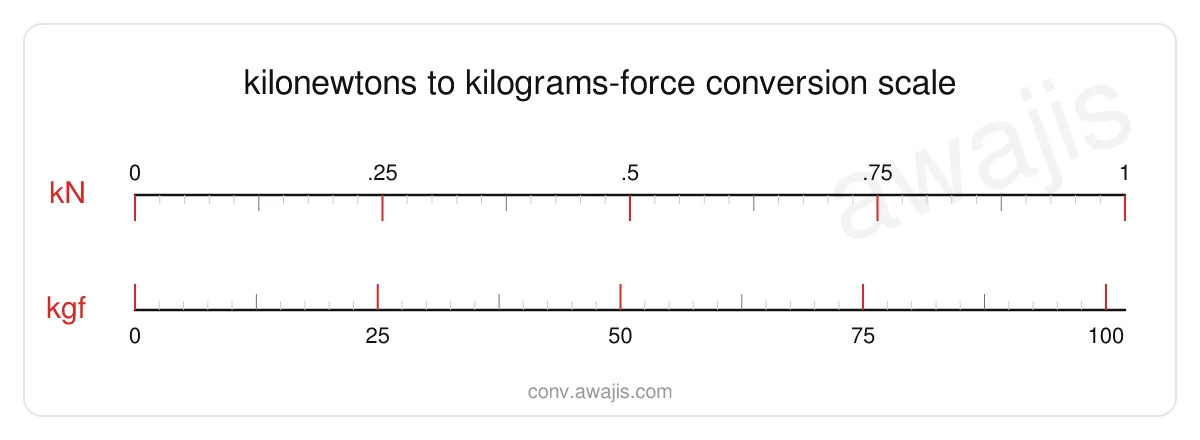

Kilonewtons to Kilograms-force Conversion Chart
| Kilonewtons (kN) | Kilograms-force (kgf) |
|---|---|
| 0.1 | 10.197162 |
| 0.25 | 25.492905 |
| 0.5 | 50.98581 |
| 1 | 101.97162 |
| 2 | 203.94324 |
| 3 | 305.91486 |
| 5 | 509.8581 |
| 10 | 1019.7162 |
| 20 | 2039.4324 |
| 25 | 2549.2905 |
| 50 | 5098.581 |
| 100 | 10197.162 |
| 250 | 25492.905 |
| 1000 | 101971.62 |
Understanding the Units
What is a Kilonewton?
A kilonewton equals 1,000 newtons.
Common contexts: structural engineering, climbing equipment ratings.
What is a Kilograms-force?
A kilogram-force equals exactly 9.80665 newtons — the gravitational force on a one-kilogram mass at standard gravity.
Common contexts: legacy engineering, tire pressure (kgf/cm²).
How to Convert Kilonewtons to Kilograms-force
To convert kilonewtons to kilograms-force, multiply by 101.97162. The kilogram-force is defined as the weight of one kilogram under standard gravity (g₀ = 9.80665 m/s²), so 1 kgf = 9.80665 N exactly. Dividing 1,000 N by 9.80665 gives the conversion factor used here.
Conversion Formula
- Kilonewtons to kilograms-force: kgf = kN × 101.97162
- Kilograms-force to kilonewtons: kN = kgf ÷ 101.97162 (or kgf × 0.00980665)
- Scientific notation: 1 kN ≈ 1.0197162 × 10² kgf
The factor is exact relative to the defined value of standard gravity. A useful rule of thumb: 1 kN ≈ 102 kgf, or equivalently, 10 kN ≈ 1 tonne-force.
Common Conversions
| Kilonewtons (kN) | Kilograms-force (kgf) | Approx. mass equivalent |
|---|---|---|
| 0.1 | 10.20 | ~10 kg lifted statically |
| 0.5 | 50.99 | ~51 kg |
| 1 | 101.97 | ~102 kg (large adult) |
| 2.5 | 254.93 | ~255 kg |
| 5 | 509.86 | ~0.51 tonnes |
| 10 | 1,019.72 | ~1.02 tonnes |
| 15 | 1,529.57 | ~1.53 tonnes |
| 22 | 2,243.38 | ~2.24 tonnes (UIAA carabiner) |
| 24 | 2,447.32 | ~2.45 tonnes |
| 33 | 3,365.06 | ~3.37 tonnes (rope MBS) |
| 50 | 5,098.58 | ~5.1 tonnes |
| 100 | 10,197.16 | ~10.2 tonnes |
| 250 | 25,492.91 | ~25.5 tonnes |
| 1,000 | 101,971.62 | ~102 tonnes |
Understanding the Units
What Is a Kilonewton?
The kilonewton (symbol: kN) is the SI unit newton scaled by the prefix kilo (10³). One kilonewton equals 1,000 newtons. It is the natural unit for engineering forces in the thousands-of-newtons range — structural loads, climbing equipment, hoist and crane ratings, tow vehicle drawbar forces, and impact loads in vehicle safety testing.
What Is a Kilogram-force?
A kilogram-force (symbol: kgf, also written kp for kilopond) is defined as the gravitational force exerted by one kilogram of mass under standard gravity: 1 kgf = 9.80665 N. It is a gravitational metric unit, not SI. Because gram-scaled and kilogram-scaled balances directly read weight in terms of mass, kgf has long been the intuitive unit for lifting, weighing, and "load capacity" applications — even though physicists prefer the gravity-independent newton.
kgf, kp, and the Gravitational Metric System
The kilogram-force, gram-force and tonne-force all share the same anchor — standard gravity. They form a parallel "metric" force system that long competed with SI in industry:
- 1 tonne-force (tf or Mp, megapond) = 9.80665 kN = 1,000 kgf
- 1 kilogram-force (kgf, kp) = 9.80665 N = 1,000 gf
- 1 gram-force (gf, pond) = 9.80665 mN
Kilonewtons in Climbing, Lifting and Civil Engineering
Climbing and rope-access gear is rated in kN because it makes shock loads — which can multiply static body weight five- to tenfold in a fall — easy to compare. UIAA-certified carabiners are typically rated 20–25 kN on the major axis, 7–10 kN on the minor axis. A 10 mm dynamic climbing rope must hold a minimum 80 kg fall load (with fall factor 1.77) without exceeding 12 kN of impact force on the climber. Slings and quickdraws follow the same convention.
In rigging and lifting, working load limits (WLL) are quoted in kN or tonnes, with a safety factor (typically 4:1 or 5:1) below the minimum breaking strength. A grade-80 chain with a 10 mm link size has a WLL around 31 kN (~3.15 tonnes). In civil engineering, kN appears in beam reactions, anchor bolt pull-out tests, and post-tensioning cable forces.
Related Force Converters
- Kilonewtons to Newtons — the standard SI step
- Kilograms-force to Newtons — gravitational anchor unit
- Kilograms-force to Kilonewtons — the reverse direction
- Kilonewtons to Pounds-force — Imperial equivalent
- Kilograms-force to Pounds-force — cross-system gravitational
Brief History of the Kilogram-force
The kilogram-force entered metric practice in the 19th century alongside the gram-force and tonne-force. In German-speaking engineering it was often called the kilopond (kp). For a long time it sat uncomfortably between mass and force: the SI of 1948–60 formally chose the newton as the coherent unit of force, and the CGPM deprecated the kgf in 1960. Despite that, kgf clung on in mechanical testing, hydraulic pressure (1 kgf/cm² is the technical atmosphere), and consumer scales — and it still appears in mainland European, Russian and East Asian engineering norms today, often quietly alongside SI equivalents.
