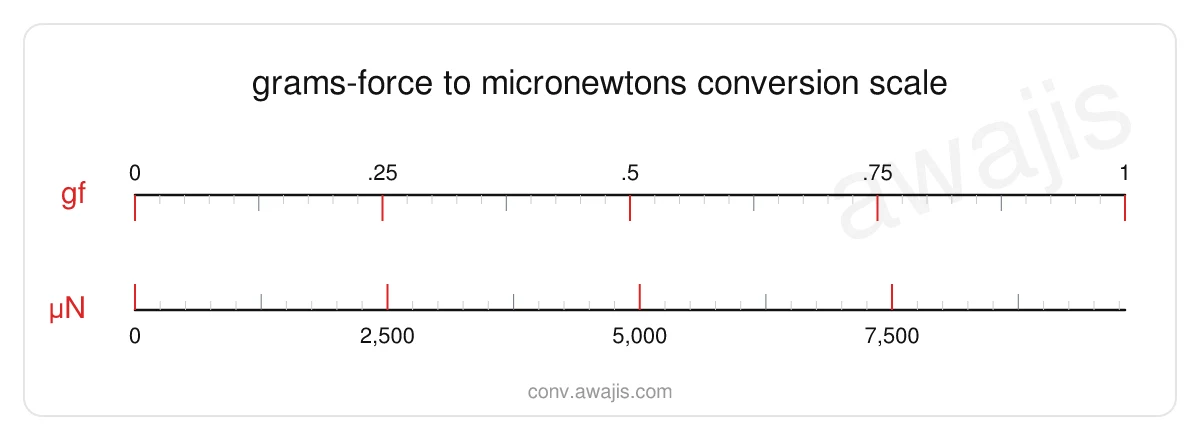

Grams-force to Micronewtons: 1 gf equals 9806.65 µN. To convert grams-force to micronewtons, multiply by 9806.65 (µN = gf × 9,806.65). For example, 10 gf = 98066.5 µN.
How to Convert Grams-force to Micronewtons
To convert from grams-force to micronewtons, multiply the value by 9806.65. The conversion is linear, meaning doubling the input doubles the output.
Conversion Formula
- Grams-force to Micronewtons:
µN = gf × 9,806.65 - Micronewtons to Grams-force:
gf = µN ÷ 9,806.65
Grams-force to Micronewtons Conversion Chart
| Grams-force (gf) | Micronewtons (µN) |
|---|---|
| 0.1 | 980.665 |
| 0.25 | 2451.6625 |
| 0.5 | 4903.325 |
| 1 | 9806.65 |
| 2 | 19613.3 |
| 3 | 29419.95 |
| 5 | 49033.25 |
| 10 | 98066.5 |
| 20 | 196133 |
| 25 | 245166.25 |
| 50 | 490332.5 |
| 100 | 980665 |
| 250 | 2451662.5 |
| 1000 | 9806650 |
Understanding the Units
What is a Grams-force?
A kilogram-force equals exactly 9.80665 newtons — the gravitational force on a one-kilogram mass at standard gravity.
Common contexts: legacy engineering, tire pressure (kgf/cm²).
What is a Micronewton?
A millinewton equals one thousandth of a newton.
Common contexts: precision instruments, biomechanics.
How to Convert Grams-force to Micronewtons
To convert grams-force to micronewtons, multiply by 9,806.65. The factor combines standard gravity (9.80665 m/s²) with the SI prefix micro (10⁻⁶). One gram-force equals 9,806.65 µN exactly, so each gram on a balance produces nearly ten thousand micronewtons of weight under standard gravity.
Conversion Formula
- Grams-force to Micronewtons: µN = gf × 9,806.65
- Micronewtons to Grams-force: gf = µN ÷ 9,806.65
- Scientific notation: 1 gf = 9.80665 × 10³ µN
Both reference values are defined exactly, so the conversion factor is exact. The result is whichever unit is more compact for the application — micronewtons for AFM and MEMS work, grams-force for benchtop balances.
Common Conversions
| Grams-force (gf) | Micronewtons (µN) | Real-World Anchor |
|---|---|---|
| 0.001 | 9.81 | Fruit fly weight |
| 0.01 | 98.07 | Mosquito weight |
| 0.1 | 980.67 | Honeybee weight |
| 0.5 | 4,903.33 | Half a paperclip |
| 1 | 9,806.65 | Standard paperclip |
| 2.5 | 24,516.63 | US penny |
| 3.7 | 36,284.61 | Sheet of A4 paper |
| 5 | 49,033.25 | US nickel |
| 8.2 | 80,414.53 | AAA battery |
| 15 | 147,099.75 | Sewing thimble |
| 23 | 225,552.95 | AA battery |
| 50 | 490,332.50 | Golf tee |
| 100 | 980,665.00 | Small lemon |
| 250 | 2,451,662.50 | Stick of butter |
Understanding the Units
What Is a Gram-force?
The gram-force (symbol: gf) is the weight of one gram under standard Earth gravity: 1 gf = 9.80665 × 10⁻³ N = 9,806.65 µN. The unit is non-SI but persists in laboratory balances, textile yarn-tension specifications, and clinical instruments — anywhere that mass and weight have a fixed numerical ratio at sea level.
What Is a Micronewton?
The micronewton (symbol: µN) is one millionth of a newton: 1 µN = 10⁻⁶ N. The unit is standard in microscale physics and engineering: atomic force microscopy cantilever forces, MEMS actuator outputs, ion-thruster impulse measurements, and biological force probes. A typical AFM cantilever might apply 1–100 nN of force, while a MEMS comb-drive actuator outputs tens to hundreds of µN.
The Small-Force Scale
Force at the micro and milli scale is where many emerging technologies live. Reference points:
- 1 pN (piconewton) = 10⁻¹² N — single-molecule forces (DNA stretching)
- 1 nN (nanonewton) = 10⁻⁹ N — AFM cantilever, cell-membrane probes
- 1 µN = 10⁻⁶ N — MEMS actuators, ion thrusters
- 1 mN = 10⁻³ N — small spring scales, fibre tension
- 1 gf = 9.80665 mN — single paperclip weight
Micronewtons in AFM, MEMS, and Microbalance Work
Atomic force microscopy probes surfaces with cantilevers calibrated to deliver forces in the nN-to-µN range. Imaging soft biological samples uses 0.1–1 nN; nanoindentation hardness tests use 1–100 µN. AFM-derived spring constants and tip-deflection signals are routinely cross-checked against gram-force calibration weights, requiring the gf-to-µN conversion to bridge balance readings (gf) and probe readouts (µN).
MEMS designers specify actuator outputs and sensor sensitivities in µN. A comb-drive electrostatic actuator might generate 50 µN per applied volt; a piezoelectric microsensor might resolve 10 µN. Microbalances used in pharmaceutical and forensic labs reach 0.1 µg resolution, which corresponds to about 0.98 nN — three orders of magnitude finer than the µN scale. Reporting outputs in the µN range keeps the numbers between 1 and a few thousand, which is the most legible range for engineering datasheets.
Related Force Converters
- Micronewtons to Newtons — µN in base SI
- Grams-force to Millinewtons — next rung up
- Grams-force to Nanonewtons — next rung down
- Grams-force to Newtons — gf in SI base
- Grams-force to Dynes — CGS equivalent
Brief History of the Micronewton
The micronewton came into widespread practical use only after the late 1980s, when the rise of atomic force microscopy (invented at IBM in 1986) and MEMS fabrication created routine engineering work in the µN range. Before then, sub-millinewton forces appeared mostly in surface-tension measurements, reported in dyn/cm under the CGS system.
The newton itself was adopted by the 9th CGPM in 1948, and the prefix micro was standardised in 1960. The gram-force, much older, dates from the 19th century and was fixed to an exact newton value by the 3rd CGPM in 1901, which set standard gravity at 9.80665 m/s². Today the µN serves as the modern small-force unit while the gram-force lingers on benchtop balance displays and textile specifications.
