Grams-force to Kilonewtons: 1 gf equals 9.80665e-6 kN. To convert grams-force to kilonewtons, multiply by 9.80665e-6 (kN = gf × 9.8067e-6). For example, 10 gf = 9.80665e-5 kN.
How to Convert Grams-force to Kilonewtons
To convert from grams-force to kilonewtons, multiply the value by 9.80665e-6. The conversion is linear, meaning doubling the input doubles the output.
Conversion Formula
- Grams-force to Kilonewtons:
kN = gf × 9.8067e-6 - Kilonewtons to Grams-force:
gf = kN ÷ 9.8067e-6

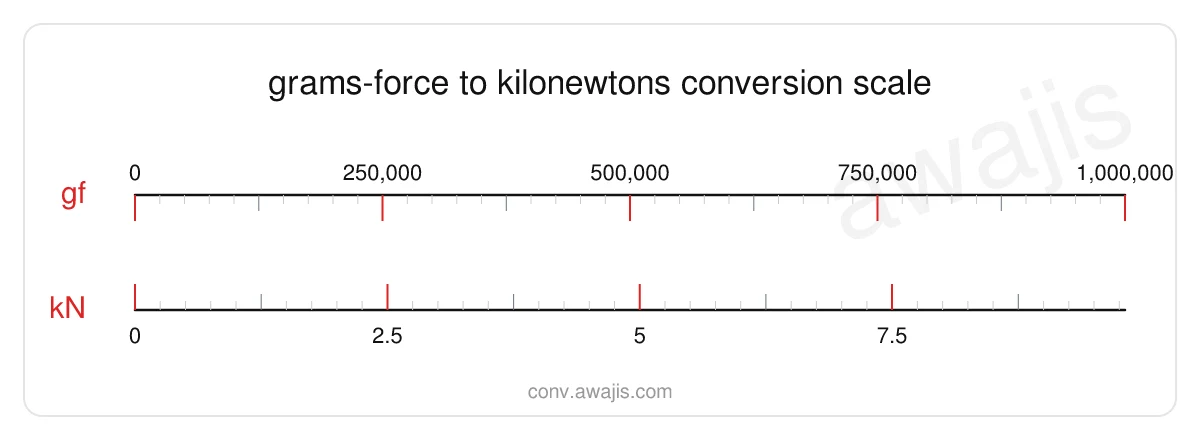

Grams-force to Kilonewtons Conversion Chart
| Grams-force (gf) | Kilonewtons (kN) |
|---|---|
| 0.1 | 9.80665e-7 |
| 0.25 | 2.45166e-6 |
| 0.5 | 4.90333e-6 |
| 1 | 9.80665e-6 |
| 2 | 1.96133e-5 |
| 3 | 2.94200e-5 |
| 5 | 4.90333e-5 |
| 10 | 9.80665e-5 |
| 20 | 0.000196 |
| 25 | 0.000245 |
| 50 | 0.00049 |
| 100 | 0.000981 |
| 250 | 0.002452 |
| 1000 | 0.009807 |
Understanding the Units
What is a Grams-force?
A kilogram-force equals exactly 9.80665 newtons — the gravitational force on a one-kilogram mass at standard gravity.
Common contexts: legacy engineering, tire pressure (kgf/cm²).
What is a Kilonewton?
A kilonewton equals 1,000 newtons.
Common contexts: structural engineering, climbing equipment ratings.
How to Convert Grams-force to Kilonewtons
To convert grams-force to kilonewtons, multiply by 9.80665 × 10⁻⁶. This compound factor combines two exact constants: standard gravity (9.80665 m/s²) and the SI prefix kilo (10³). The conversion spans six orders of magnitude because the gram-force is a tabletop-scale unit while the kilonewton is a structural-engineering unit.
Conversion Formula
- Grams-force to Kilonewtons: kN = gf × 9.80665 × 10⁻⁶
- Kilonewtons to Grams-force: gf = kN × 101,971.621
- Scientific notation: 1 gf = 9.80665 × 10⁻⁶ kN
Both reference values — standard gravity and the kilo prefix — are defined exactly, so the conversion factor is exact. No experimental uncertainty enters the calculation.
Common Conversions
| Grams-force (gf) | Kilonewtons (kN) | Scientific Notation |
|---|---|---|
| 100 | 0.000981 | 9.807 × 10⁻⁴ |
| 500 | 0.004903 | 4.903 × 10⁻³ |
| 1,000 | 0.009807 | 9.807 × 10⁻³ |
| 2,500 | 0.024517 | 2.452 × 10⁻² |
| 5,000 | 0.049033 | 4.903 × 10⁻² |
| 10,000 | 0.098067 | 9.807 × 10⁻² |
| 25,000 | 0.245166 | 2.452 × 10⁻¹ |
| 50,000 | 0.490333 | 4.903 × 10⁻¹ |
| 75,000 | 0.735499 | 7.355 × 10⁻¹ |
| 100,000 | 0.980665 | 9.807 × 10⁻¹ |
| 250,000 | 2.451663 | 2.452 × 10⁰ |
| 500,000 | 4.903325 | 4.903 × 10⁰ |
| 750,000 | 7.354988 | 7.355 × 10⁰ |
| 1,000,000 | 9.806650 | 9.807 × 10⁰ |
Understanding the Units
What Is a Gram-force?
The gram-force (symbol: gf) is the weight exerted by one gram of mass under standard Earth gravity. By definition, 1 gf = 9.80665 × 10⁻³ N. It is a non-SI metric unit but remains common in textile testing, laboratory balances, and small-force measurements where the gram-mass is a more intuitive reference than the newton.
What Is a Kilonewton?
The kilonewton (symbol: kN) is 1,000 newtons. It is the working unit of structural engineering, climbing-gear safety ratings, and crash-test data: 1 kN = 1,000 N ≈ 101.97 kgf ≈ 224.81 lbf. A kilonewton roughly corresponds to the weight of a 102 kg mass at sea level, which makes it a natural scale for human-sized loads.
Bridging the Six-Order Gap
Force units span an enormous dynamic range. The gf-to-kN conversion crosses six orders of magnitude:
- 1 gf ≈ 9.81 mN ≈ 0.00981 N
- 1 N = 0.001 kN
- 1 kN = 1,000 N = 101,971.62 gf
- 1 kN = 101.97 kgf ≈ 224.81 lbf
Gram-force and Kilonewton in Materials Testing
Materials laboratories measure small-sample forces in grams-force because load cells in benchtop testers are mass-calibrated. A peel-adhesion test for medical tape might record 250 gf/cm; a single-fibre tensile test on Kevlar yarn might reach 2,500 gf at break. Once results are aggregated to full-product loads — a structural cable, a fastener array, a composite panel — engineering specifications switch to kilonewtons.
Climbing-rope manufacturers test individual yarns in gram-force, but publish whole-rope dynamic-impact ratings in kilonewtons (UIAA limit: 12 kN). The same logic applies to bolted joints, where bolt-thread shear tests on a single thread may report in gf while the full joint capacity is in kN. Bridging the two scales accurately depends on the exact 9.80665 × 10⁻⁶ factor.
Related Force Converters
- Kilonewtons to Newtons — kN in base SI
- Grams-force to Newtons — gf in SI terms
- Grams-force to Millinewtons — finer SI scale
- Kilograms-force to Kilonewtons — step up by 10³
- Pounds-force to Kilonewtons — imperial-to-SI equivalent
Brief History of the Kilonewton
The newton was adopted as the SI unit of force in 1948 by the 9th General Conference on Weights and Measures, and the prefix kilo was standardised as part of the SI prefix system in 1960. Before that, structural engineers used kilogram-force (kgf) or tonnes-force (tf) — 1 kN equals about 0.102 tonne-force.
The shift from kgf to kN in engineering codes accelerated through the 1970s and 1980s, as international standards bodies (ISO, Eurocode, ASTM) revised structural design documents into SI units. Today every major civil-engineering code expresses loads, capacities, and partial factors in kN. The gram-force, meanwhile, survives in small-sample testing because the underlying instruments still measure mass-calibrated weight on a balance.
